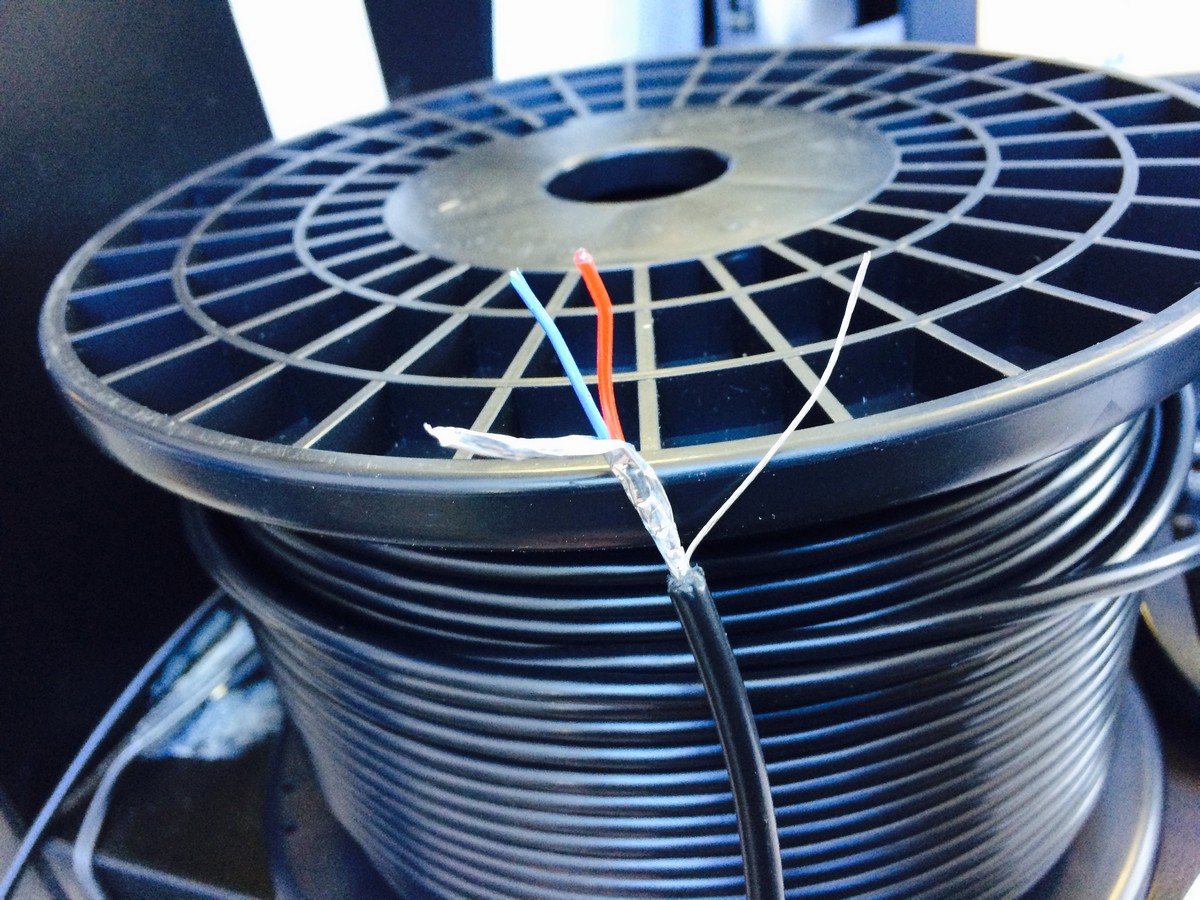

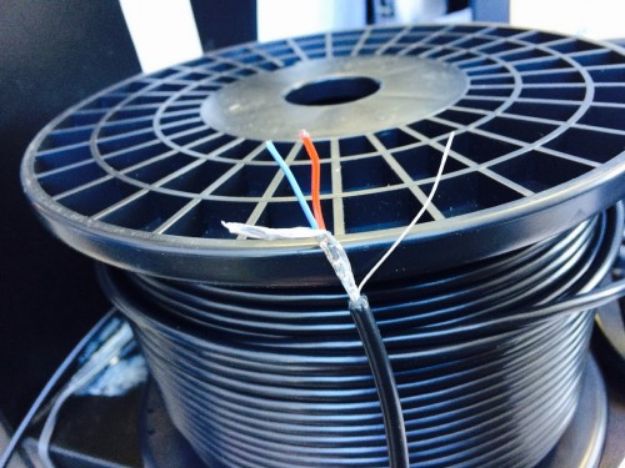

SOLD BY THE REEL (300 METRES)
TC DATA CABLE
- OD: 4.0MM FLEXIBLE PVC
- 7/0.20TC x 2 Conductor + AL-MYLAR + 7/0.20TC x 1 Conductor
- 1.1 PE Foamed Insulation, 7/0.20TC DRAIN WIRE
Datasheet
Application fields : Patch-bay connections
Multieffect connections
Rack system connections
Conductors : Tinned copper
24 AWG = 7 x 0.20 mm (0.22 mm²)
Insulation : PE ø 1.10 mm
Display : Aluminium foil 100%
Drain wire : Tinned copper
24 AWG = 7 x 0.20 mm (0.22 mm²)
Jacket : Flexible PVC 80 shore ø 4.00 mm
Conductor resistance : < 87 Ohm/Km @ 20°C
Conductor/conductor capacitance : 63 pF/mt @ 1 KHz
Conductor/shield capacitance : 107 pF/mt @ 1 KHz
Nominal Impedance : 80 ± 3 Ohm
Attenuation : 1 MHz = 2.10 dB/100 mt
3 MHz = 3.60 dB/100 mt
6 MHz = 5.00 dB/100 mt
8 MHz = 5.80 dB/100 mt
10 MHz = 6.50 dB/100 mt
Velocity of propagation : 66 %
Operating temperature : -20°C / +80°C
Working voltage : 700 V AC
1000 V DC
Weight : 20 Kg/Km
Minimum bending radius : 25 mm
Colours Available : Black
Technical notes : 300 mt. reel
