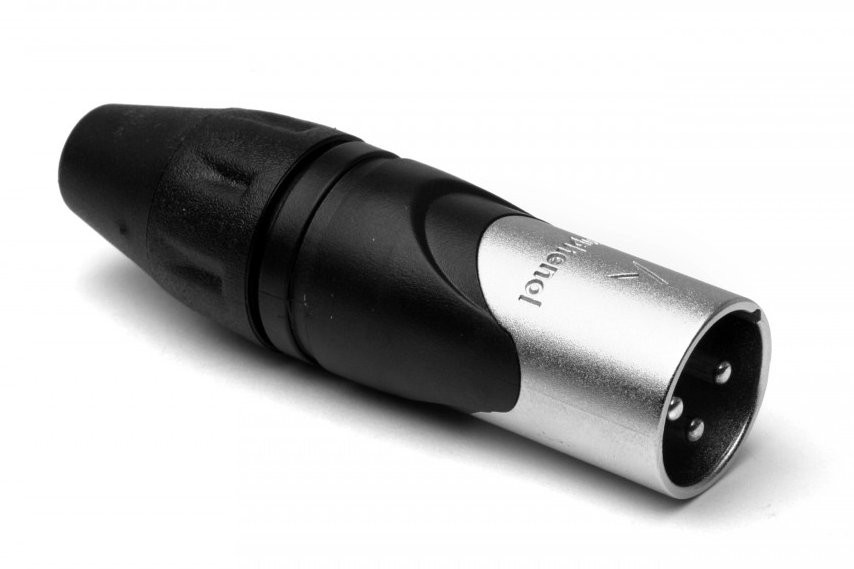

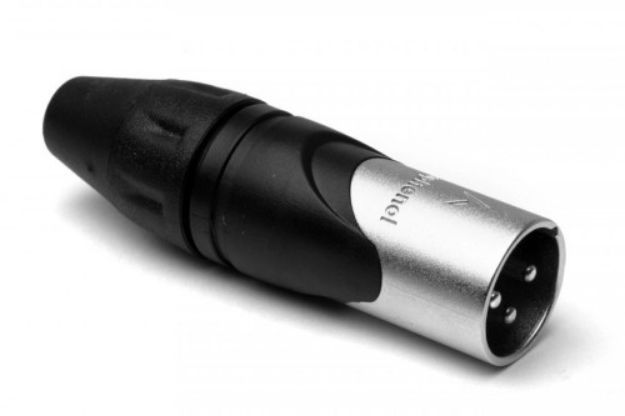

Amphenol XLR Connector 3 Pin Cord Plug MALE

Overview

Unique Australian designed shell and housing One piece ground / latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance Ergonomic sleeve design for improved grip Channel I.D capability with coloured sleeves Oversized ergonomic latch for quick and easy mating Leading first mate last break pin 1 on socket connectors Chuck style cable clamp to suit 3mm – 8mm cable O.D. with integrated split to allow inclusion after soldering Concealed latching point for improved aesthetics, sealing and strength Overmolded boot with flex bend relief for improved aesthetics, cable protection and boot retention Concentric socket contact design provides optimal contact resistance Precision machined pin contacts as standard Compact solder buckets to reduce termination time and material wastage during the soldering process Zinc diecast shell housing for robustness and wear with Satin nickel or Black finish Available in 3,4 and 5 contact arrangements

Features

• Unique Australian designed shell and housing One piece ground / latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance Ergonomic sleeve design for improved grip Channel I
• D capability with coloured sleeves Oversized ergonomic latch for quick and easy mating Leading first mate last break pin 1 on socket connectors Chuck style cable clamp to suit 3mm – 8mm cable O
• with integrated split to allow inclusion after soldering Concealed latching point for improved aesthetics, sealing and strength Overmolded boot with flex bend relief for improved aesthetics, cable protection and boot retention Concentric socket contact design provides optimal contact resistance Precision machined pin contacts as standard Compact solder buckets to reduce termination time and material wastage during the soldering process Zinc diecast shell housing for robustness and wear with Satin nickel or Black finish Available in 3,4 and 5 contact arrangements

Specifications

Refer to manufacturer data for detailed technical specifications.

Applications

Amphenol XLR Connector 3 Pin Cord Plug MALE can be specified for a range of professional, installation or integration projects as required.

Why This Model

Amphenol XLR Connector 3 Pin Cord Plug MALE is selected for its balance of performance, reliability and integration flexibility within its category.
