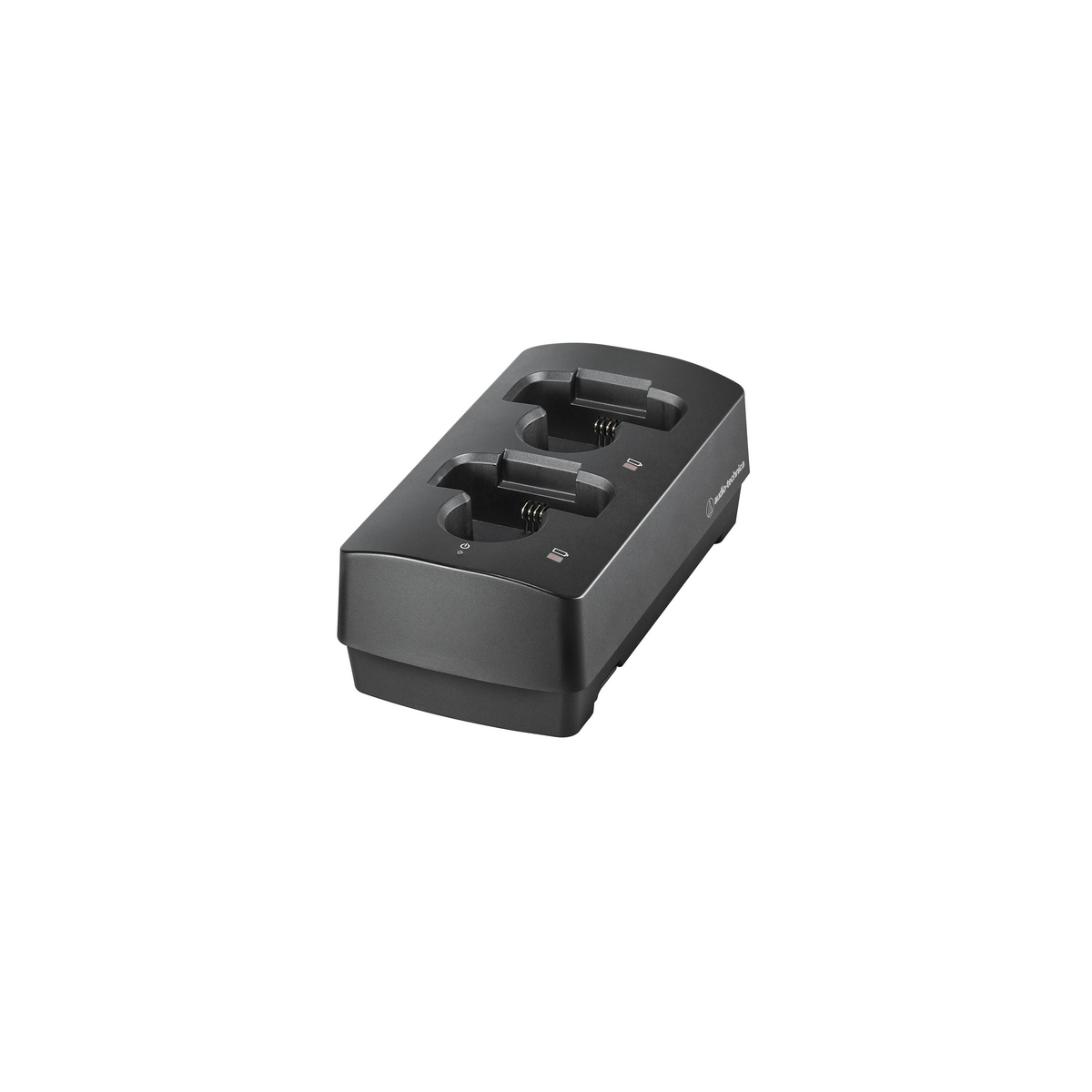

The ATW-CHG3N is a two bay charging station for use with 3000 Series (fourth generation) handheld (ATW-T3202) and bodypack (ATW-T3201) transmitters. The station charges NiMH batteries (not included) while they are housed within a transmitter. It will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station
The ATW-CHG3N is equipped with power and charging status indicator LEDs for easy monitoring
Using the AT8687 link kit and AD-SA1230XA AC Power Supply, up to five ATW-CHG3N charging stations can be linked and powered by a single power supply. The AT8687 and AD-SA1230XA may be purchased separately or bundled with an ATW-CHG3N charging station: ATW-CHG3EXP (charger and link kit), ATW-CHG3AD (charger and AC adapter)
Specifications:
Power Requirements: 12V DC 3.0 A
Charging Output: 3.6V DC 500 mA (x2)
Power Consumption: 4.9 W (when 2 transmitters are charging)
27.4 W (when 5 units are connected and 10 transmitters are charging)
Two bay charging station for use with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters
Charges NiMH batteries while they are housed within a transmitter
Automatically shuts off if alkaline or damaged batteries are detected
Indicator LEDs for easy monitoring of power and charging status
Up to five ATW-CHG3 charging stations can be linked and powered by a single power supply (using AT8687 link kit and AD-SA1230XA AC adapter, sold separately)
Transmitters power off automatically when placed in the charging station and power on automatically when removed
AT8687 kit is used to link one ATW-CHG3/ATW-CHG3N
