The Audio-Technica fourth generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 100 m and is available in frequency band EE1 (530–590 MHz) – which provides a class leading 60 MHz tuning range, more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

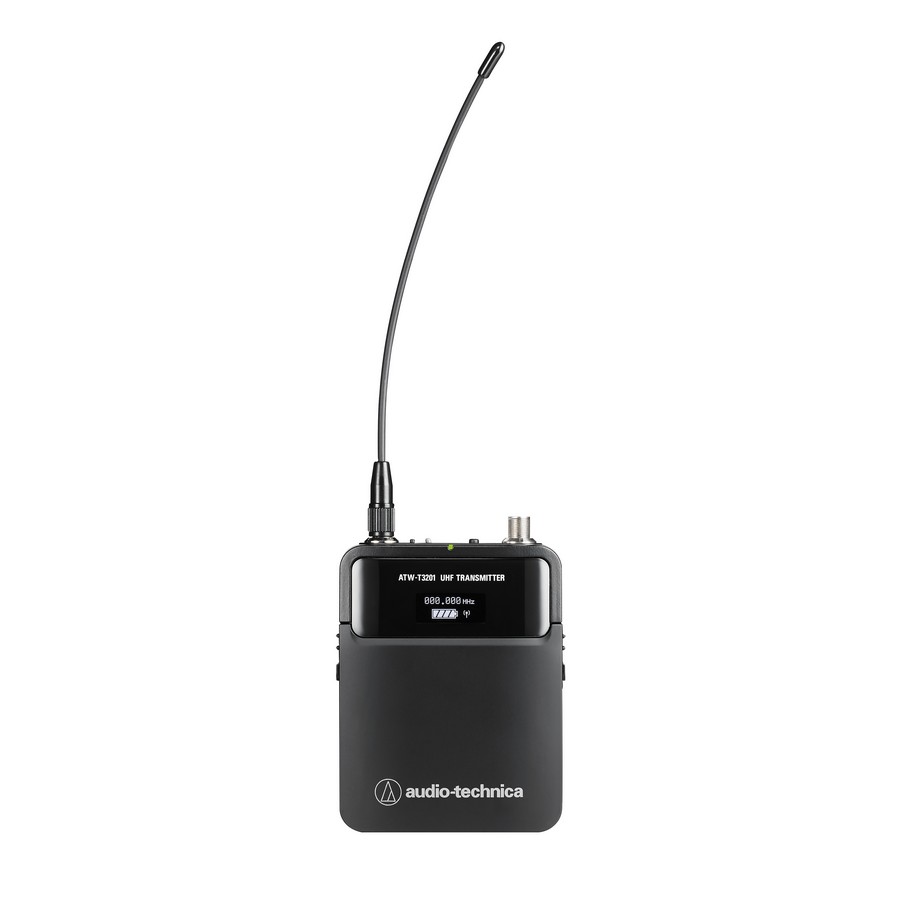

Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica’s new rugged cH-style screw down 4 pin connector for secure connection to A-T’s cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.
Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
Unique multifunction button on the handheld and body pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
True Diversity operation reduces dropouts
Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
Frequency scan and IR sync functionality for ease of setup
Dual mode receiver display can switch between standard view or a performance view that highlights key metering
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Handheld transmitter offers extremely low handling noise and includes an industry standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
New rugged cH-style connector on body pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw down 4 pin connector
Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
Antenna power available for powered antennas and other in line RF devices
Ground lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks
