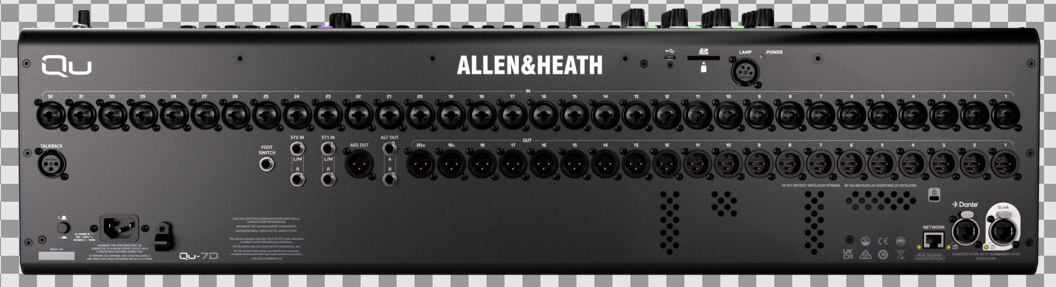

Qu-7 takes the ever popular Qu-32 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a capacitive touchscreen, channel strip displays and fully customisable layers. In addition, the Qu-7D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment. Both the Qu-7 and Qu-7D are 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands on control
• 96kHz FPGA Core
• 36 x Inputs to Mix (32 x Mono/Linkable, 2 x Stereo)
• Stereo Main LR Output
• 12 x Mixes (6 x Mono/Linkable Aux, 6 x Stereo Aux/Group)
• 4 x Matrix (Mono/Linkable)
• 32 x XLR/Jack ‘Combi’ Mic/Line Input Sockets
• 2 x Stereo Line Input Sockets (each 2 x TRS)
• 1 x Talkback Socket
• 20 x XLR Output Sockets
• 2 x TRS Output Sockets
• 1 x AES3 Stereo Digital Output Socket
• 128 x 128 Intelligent SLink Port for Everything I/O expansion and system connections
• 16 x 16 48/96 kHz Dante interface
• Stereo Headphone Output
• 6 x Multi FX Engines with dedicated Return Channels
• 7” Capacitive Touchscreen
• 33 x 100mm Motorised Faders
• 4 x Channel Strip Layers
• 8 x SoftKeys
• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32 x 32)
• SD Card Slot for multichannel audio record/playback (16 x 16@96kHz, 32 x 32@48kHz)
• 12V Lamp Socket
• Configurable single/dual Footswitch Connection
• Configurable Chromatic Channel Meter LED’s
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote control via free apps – Windows/MacOS/iOS/Android
