Qu-6 takes the popular Qu-24 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen, channel strip displays and fully customisable layers. In addition, the Qu-6D variant features a built in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment. Both the Qu-6 and Qu-6D are 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands on control
96kHz FPGA Core
36x Inputs to Mix (32 x Mono/Linkable, 2 x Stereo)
Stereo Main LR Output
12 x Mixes (6 x Mono/Linkable Aux, 6 x Stereo Aux/Group)
4 x Matrix (Mono/Linkable)

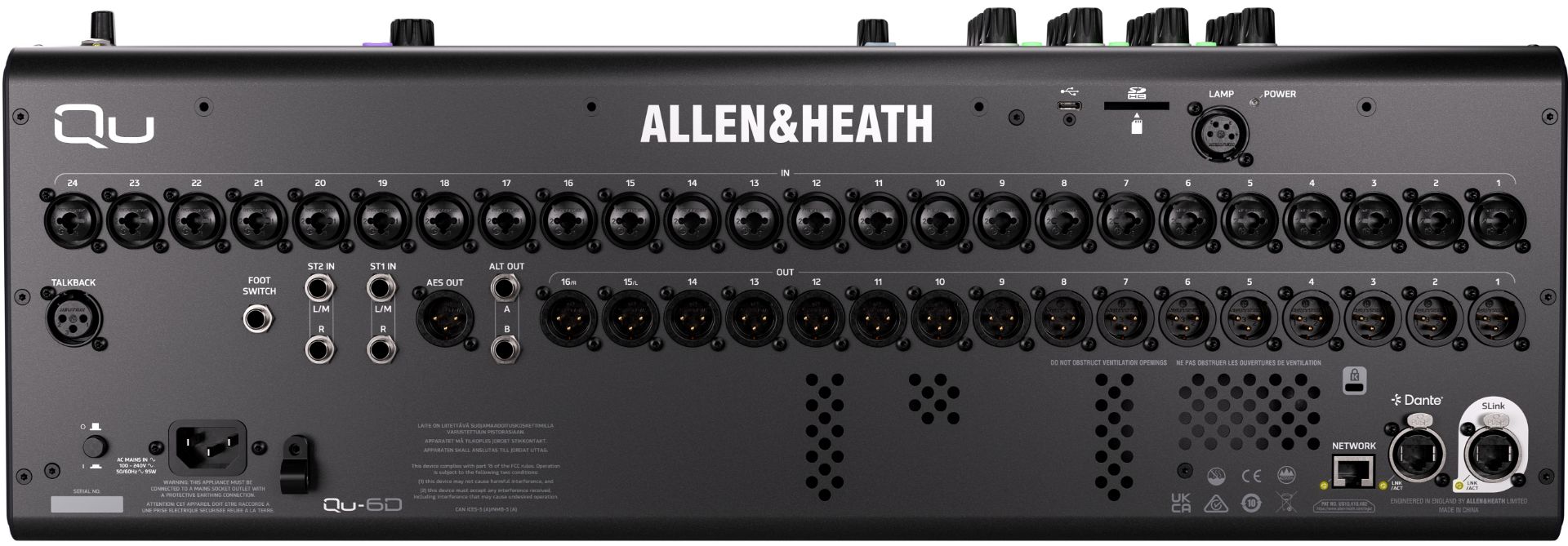

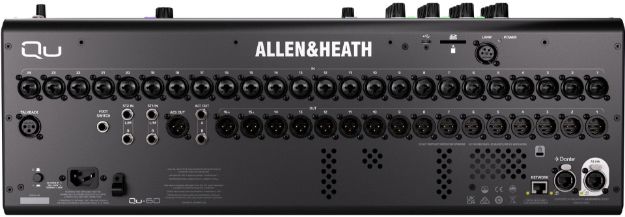

24 x XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 x Stereo Line Input Sockets (each 2 x TRS)
1 x Talkback Socket
16 x XLR Output Sockets
2 x TRS Output Sockets
1 x AES3 Stereo Digital Output Socket
128 x 128 Intelligent SLink Port for Everything I/O expansion and system connections
Stereo Headphone Output
6 x Multi FX Engines with dedicated Return Channels
7” Capacitive Touchscreen
25 x 100mm Motorised Faders
4 x Channel Strip Layers
8 x SoftKeys
USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32x32)
SD Card Slot for multichannel audio record/playback (16x16@96kHz, 32x32@48kHz)
12V Lamp Socket
Configurable single/dual Footswitch Connection
Configurable Chromatic Channel Meter LED’s
RJ45 Network Socket
Remote control via free apps – Windows/MacOS/iOS/Android • RJ45 Network Socket
• Remote control via free apps – Windows/MacOS/iOS/Android
