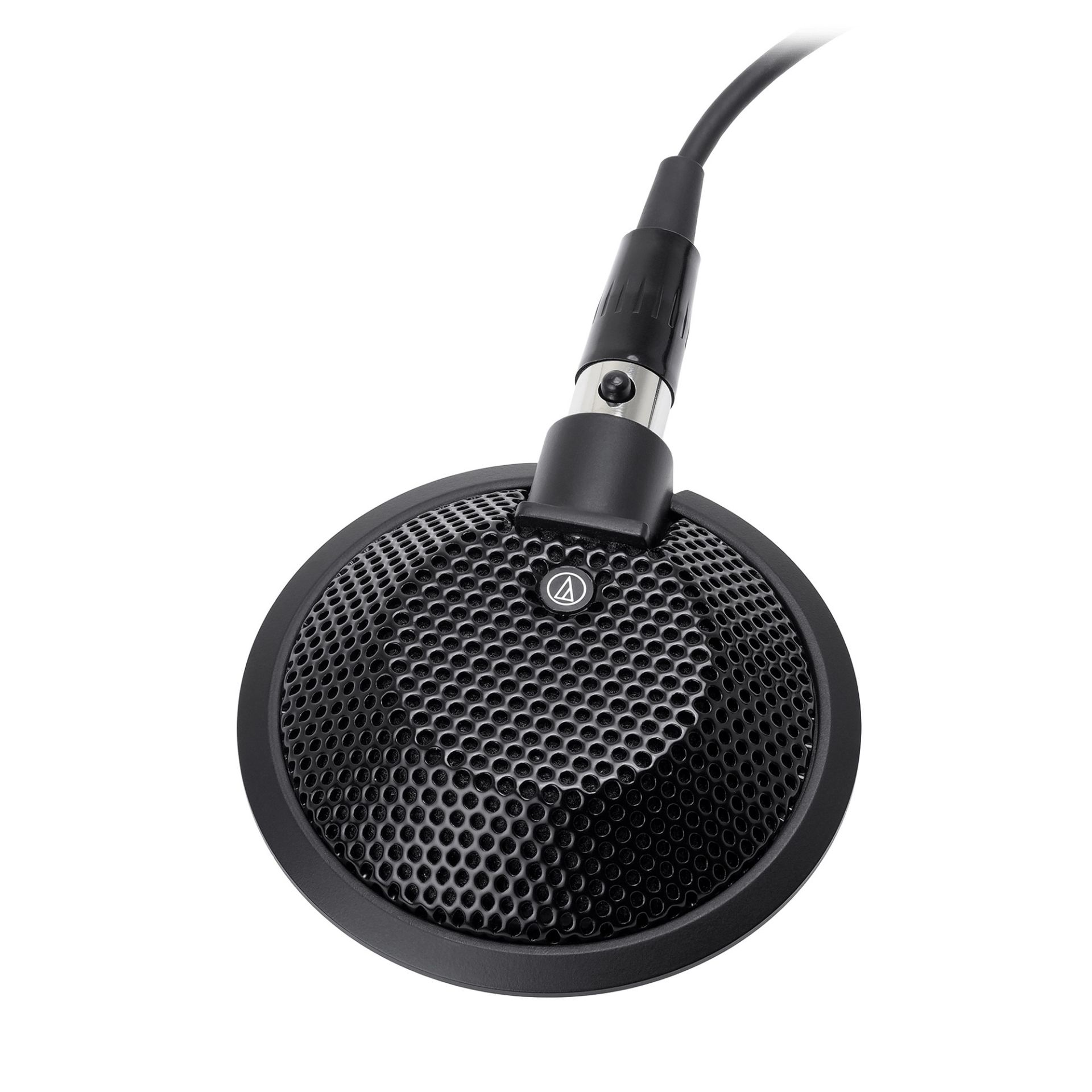

The U841R delivers exceptionally intelligible audio reproduction in a super compact, low profile design. Equipped with UniGuard® RFI shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface mount applications. The phantom powered U841R is equipped with self contained electronics, eliminating the need for an external power module.
Microphones
Element Fixed charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional in hemisphere above mounting surface
Frequency Response 40-20,000 Hz
Open Circuit Sensitivity –35 dB (17.7 mV) re 1V at 1 Pa
Maximum Input Sound Level 130 dB, 1 kHz at 1% T.H.D.
Dynamic Range 105 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 69 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical
Weight (Microphone) 84 g
Weight 84 g
Cable 7.6 m long, 3.2 mm diameter, 2 conductor, shielded cable with TA3F type and XLRM type connectors
Dimensions 65.0 mm diameter, 15.1 mm height
Dimensions (Microphone) 65.0 mm diameter,
