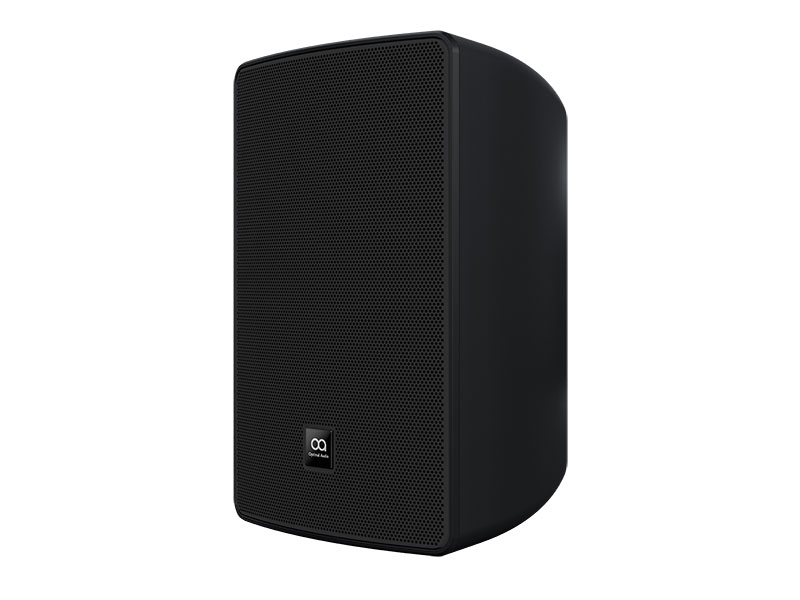

Cuboid 6 is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a compact form factor, for distributed applications with high quality background music and speech reproduction. With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54. Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution. When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers
Features
Discreet size, high performance
Portrait or landscape mounting options
Wall bracket included
Max SPL 105dB (continuous) 111dB (peak)
130° horizontal x 120° vertical coverage
IP54 for outdoor use with accessory terminal cover
SPECIFICATIONS
TYPE Two-way, full range, passive 6.5” loudspeaker
FREQUENCY RESPONSE 90Hz - 20kHz +/-3dB, -10dB @ 70Hz (when used with preset )
DRIVERS LF: 6.5”(165mm) coated paper, ferrite motor system
HF: 1” (25.4mm) Silk Dome, neodymium motor system
IP RATING IP54 when used with accessory terminal cover
RATED POWER 60 W (AES) 240W (peak)
NOMINAL IMPEDANCE 8O
SENSITIVITY (1W/1m) 89dB
MAXIMUM SPL @ 1m 107dB (cont) 113dB (peak) @ 8O
CROSSOVER 3.4kHz
RECOMMENDED HIGH PASS FILTER 24dB Per Octave @ 50 Hz
DISPERSION (-6dB) 130°H x 120°V
ENCLOSURE ABS
FINISH Black and White finish
GRILLE Painted Aluminium
CONNECTORS 4 pin Euroblock
PIN CONNECTIONS (INPUT) Positive and negative in with link out terminals
FITTINGS M4 mounting points for wall bracket
DIMENSIONS (W)200 x (H)320 x (D)190mm
RECOMMENDED SUB Sub 10
RECOMMENDED AMP Zone, SmartAmp
