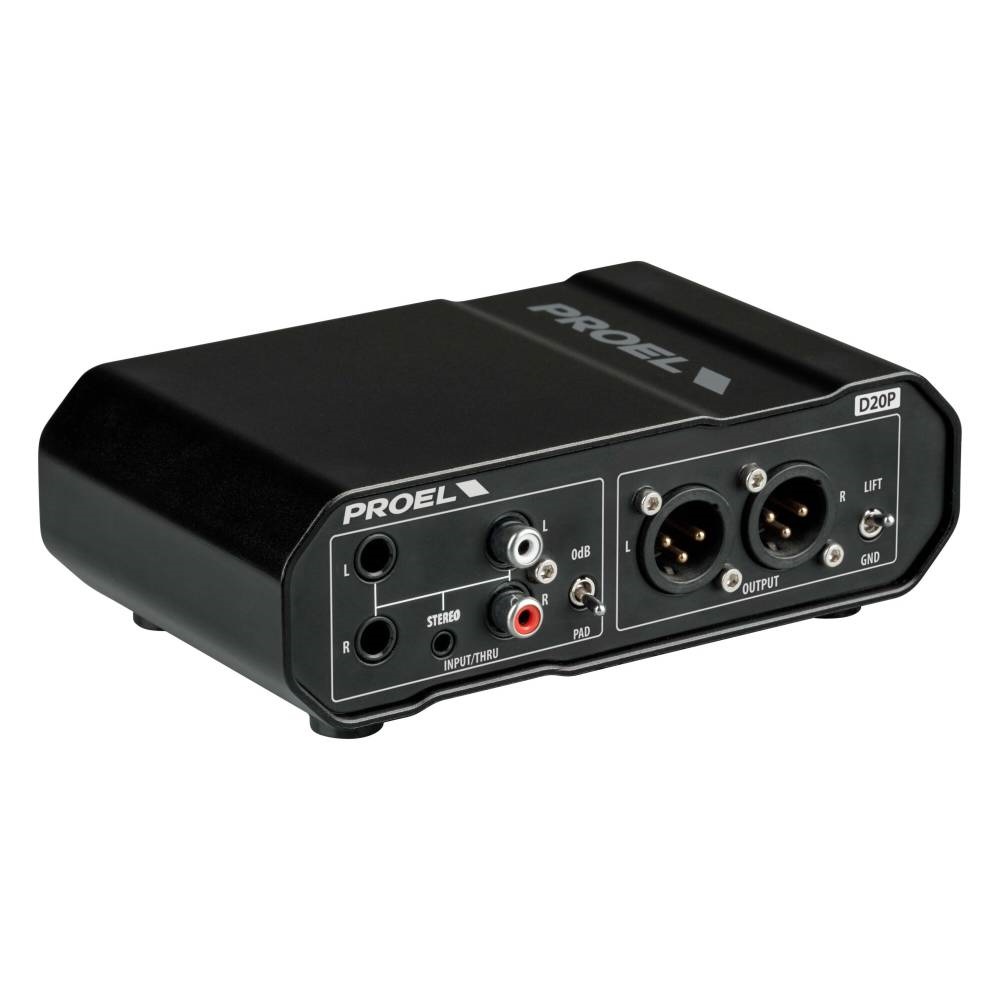

D20P is a STEREO passive direct box with transformers and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any direct electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common mode noise, like hum, is possible. D20P features two 1/4" jack to connect a stereo keyboard, or two RCA to connect a DJ console, or a 3,5mm mini jack to connect a personal computer, for maximum flexibility without the need of special adapters
Input Section
• Connectors 2 x 1/4" JACK, 2x RCA unbalanced, 1x Stereo Mini JACK
• Input Impedance >250 Kohm (no PAD) / 10 Kohm (with PAD)
• Max Input Level +20 dBu (no PAD) / +40 dBu (with PAD)
• Output Section
• Connector 2x XLR-M balanced
• Min Load Impedance 600 Ohms or greater
• Output Transformer Balanced (fully isolated)
• Max Output Level 0 dBu
• System Performance
• Distortion THD+N 0dBu < 0.007 %
• Frequency Response 10 Hz to 100 kHz (-3 dB)
• Insertion Loss -20 dB
• General
• Controls PAD -20 dB, GND LIFT
• Dimensions (W x H x D) 160 x 52 x 106 mm (6.30 x 2.05 x 4.17 ")
• Weight 0,59 Kg
