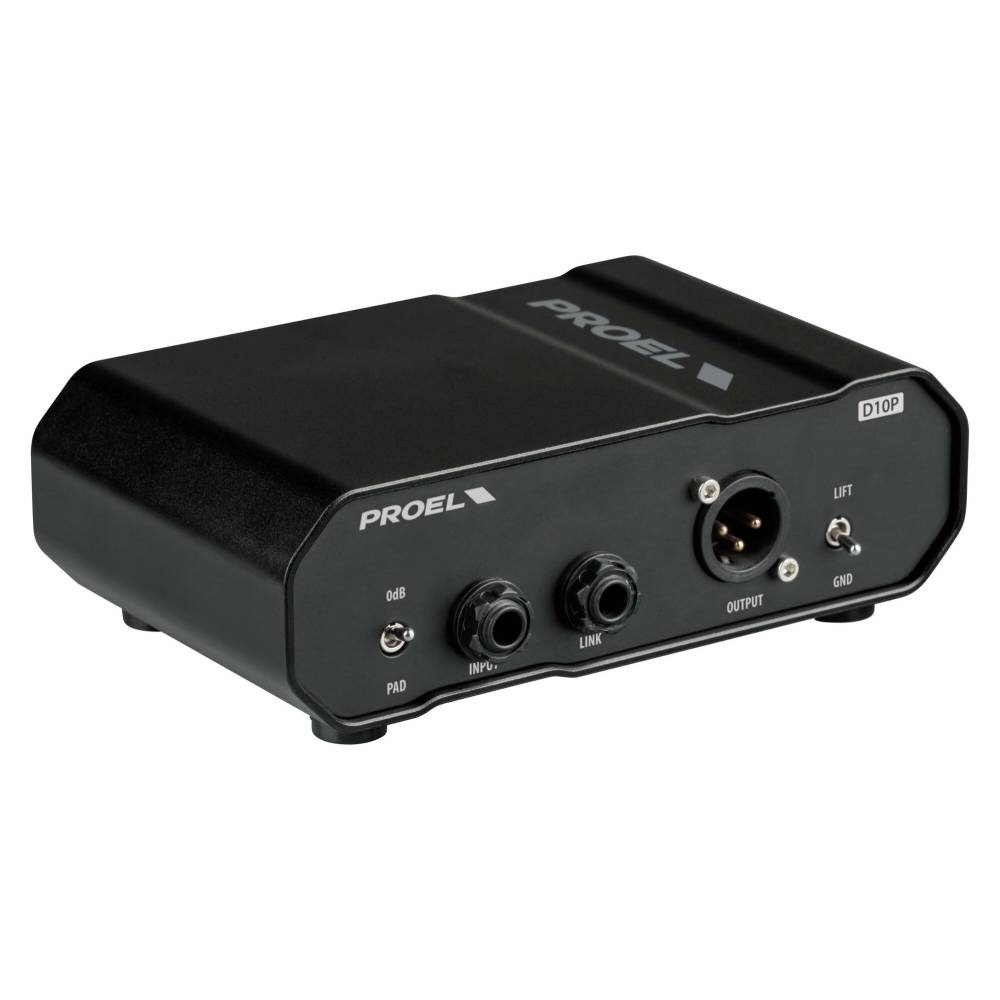

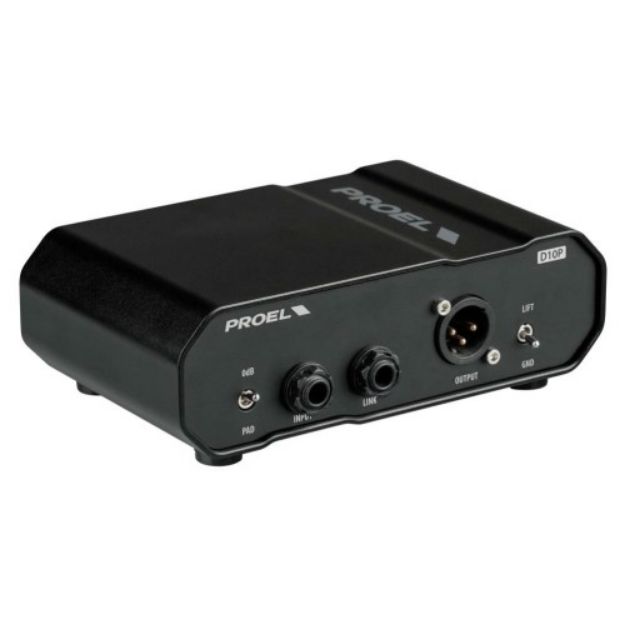

D10P is a passive direct box with transformer and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any direct electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common mode noise like hum, is possible
TECHNICAL SPECIFICATIONS
Model D10P
System Type 1 channel passive DI
Input Section
Connectors 1 x 1/4" JACK unbalanced
Link 1 x 1/4" JACK unbalanced
Input Impedance >250 Kohm (no PAD) / 10 Kohm (with PAD)
Max Input Level +20 dBu (no PAD) / +40 dBu (with PAD)
Output Section
Connector 1x XLR-M balanced
Min Load Impedance 600 Ohms or greater
Output Transformer Balanced (fully isolated)
Max Output Level 0 dBu
System Performance
Distortion THD+N 0dBu < 0.007 %
Frequency Response 10 Hz to 100 kHz (-3 dB)
Insertion Loss -20 dB
General
Controls PAD -20 dB, GND LIFT
Dimensions (WxHxD) 160x52x106 mm
Weight 0.51 kg
