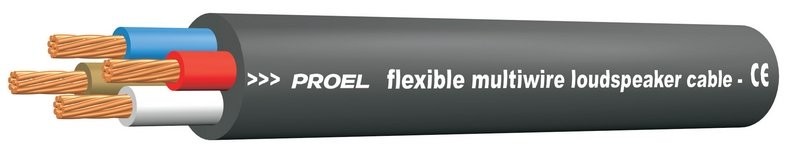

Ultra-flexible 4 twisted conductors speaker cable for passive loudspeakers - 4 x 4 mm2 section. Black colour.
Priced and sold by the Metre
Technical Specifications
•Application fields: Passive speaker connections / sound reinforcement / studio installation / live
•Conductors: Bare copper 12 AWG = 53x0,25 mm
•Lay up: four conductors twisted in short concentric layers
•Insulation: flexible PVC 4,20 mm
•Jacket: Ultra - Flexible PVC – 60 Shore
•Overall diameter: 13,20 mm
•Cable section: 4 mm2/AWG12
•Electrical Resistance @ 20°C: 4,5 Ohm/Km (conductor)
•Electrical Capacitance @ 1 KHz: 120 pF/mt (conductor/conductor)
•Operating temperature: -20°C / +70°C
•Minimum bending radius: 10 x overall diameter
•Weight: 345 Kg/Km
•Colour: Black
•Packaging: 100 m wooden reel
