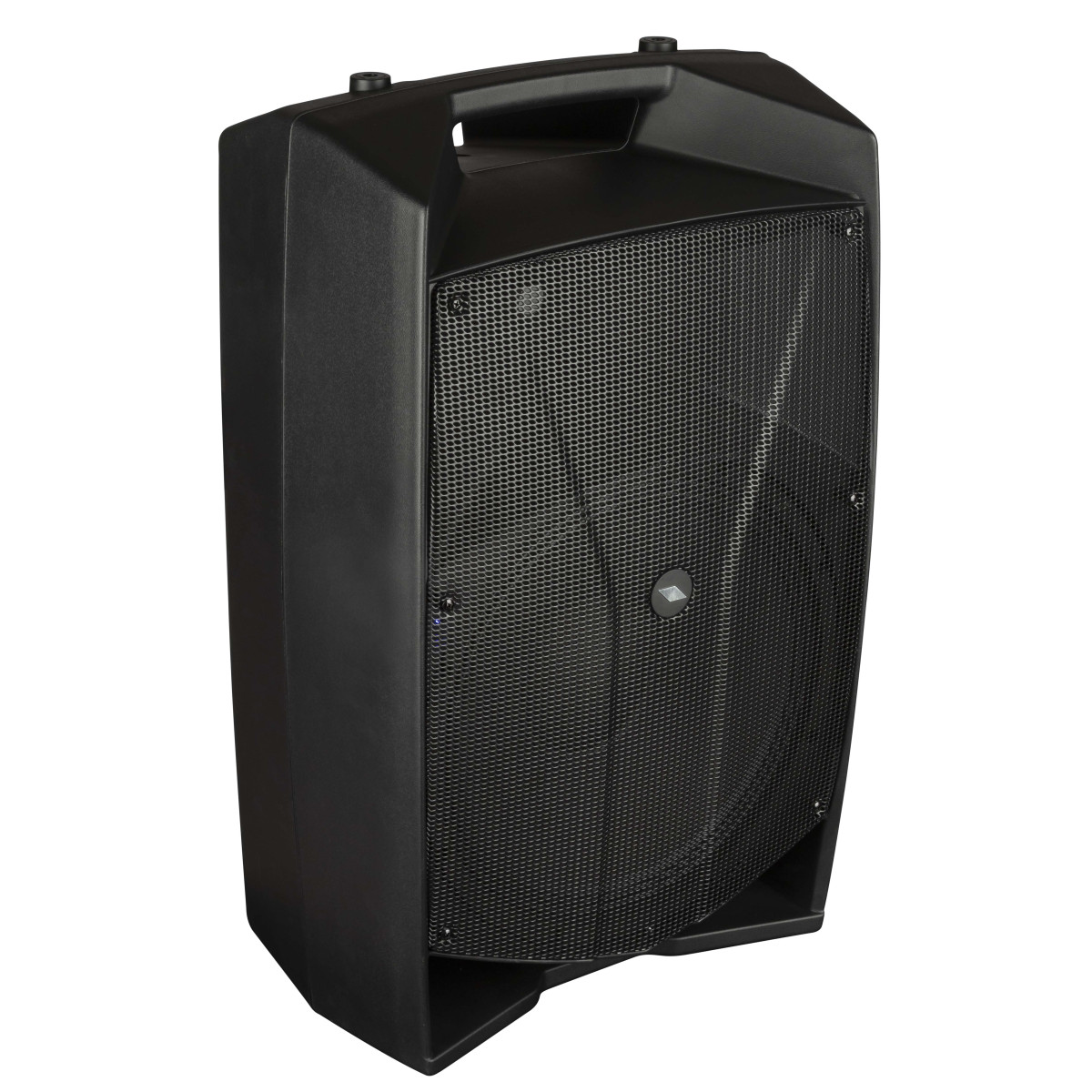

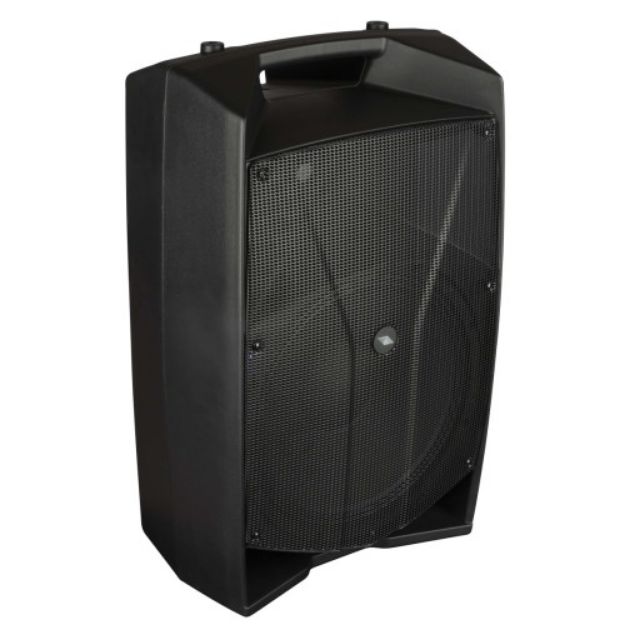

V15PRO
2 way amplified speaker with DSP
The V PRO Series is the latest evolution of the acclaimed PROEL V Series of powered loudspeakers. The V PRO speakers now feature a completely new preamplification section including an advanced high performance DSP section for a linear response and high definition sound. The possibility to select 5 different EQ presets allows to adapt the system response to different applications with a simple fingertip touch. These ultra portable speakers combine, in carefully designed and lightweight cabinets, the clearest and most defined PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price. The four models, V8PRO, V10PRO, V12PRO and V15PRO, feature a new highly efficient amplifier module able to deliver 600 W of power to the transducers. Thanks to the use of SMPS technology, this power is delivered in an ultra-lightweight package, making the V PRO the most portable PROEL loudspeakers ever
The V PRO cabinets, an expression of the most advanced Italian design, include a very comfortable suitcase style top handle for effortless transport. The inclined shape allows the speakers to be placed on their side and also used as stage monitors
Thanks to the MIC/LINE input and the WIRELESS USB input for using PROEL U24 microphone systems, the V PRO speakers can be used in a variety of applications without external equipment
Technical specifications
System type 2-way vented enclosure
High Frequency Device 1'' neodymium compression driver
Low Frequency Device 15” woofer with 2.5"VC
Angular Coverage 90° H x 60° V
Total peak power 600W
HF Amplifier Cont. Power 50W Class AB
LF Amplifier Cont. Power 250W Class D
Power Supply Type SMPS
Frequency Response 45Hz – 20kHz
Processing DSP
Presets MUSIC, LIVE, DJ, MONITOR, SPEECH
Max SPL at 1m (peak) 126dBspl
Crossover Frequency 2000 Hz
Input Impedance 30k ohm balanced / 15 kohm unbalanced
Input Sensitivity LINE: +4dBu / MIC: -30dBu
Controls MIC/LINE, DSP VOICING, LEVEL
Connectors MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
Power Supply 220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector
Rated Consumption* 300W
Construction Polypropylene
Cabinet Colour Black
Flying System 4 x M10 top/bottom
Handles 1 x top, 2 x sides
Mounting Pole 1 x bottom
Monitor taper 44°
Weight 19 Kg
Dimensions (W x H x D) 440 x 712 x 400 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program. program.
