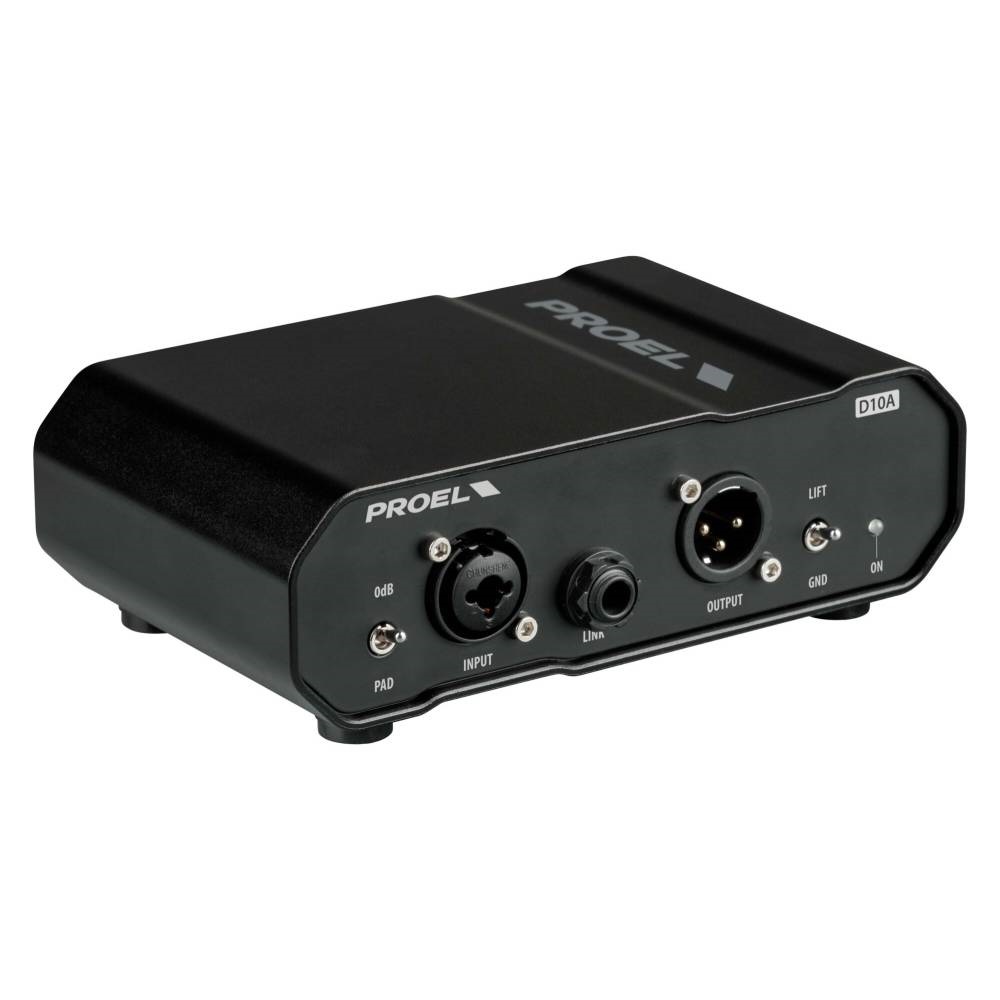

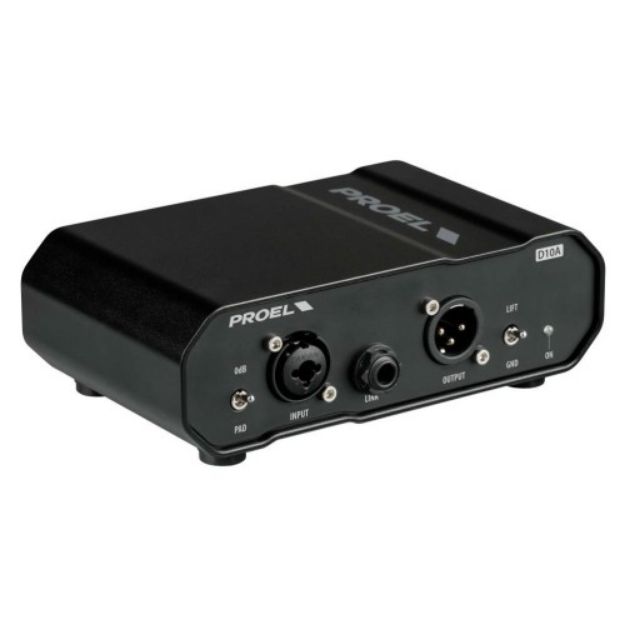

D10A is an active direct box with transformer and requires the phantom power to work. The advantage of a transformer is the possibility to avoid any direct connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common mode noise like hum, is possible. The advantage of active instead of passive DIBOX is null insertion loss and less output hum and noise
Input Section
• Connectors 1 x COMBO XLR-F + 1/4" JACK unbalanced
• Link 1 x 1/4" JACK unbalanced
• Input Impedance 1 Mohm (no PAD) / 47 Kohm (with PAD)
• Max Input Level + 16 dBu (no PAD) / + 42 dBu (with PAD)
• Output Section
• Connector XLR-M balanced
• Min Load Impedance 600 Ohms or greater
• Output Transformer Balanced (fully isolated)
• Max Output Level +16 dBu
• System Performance
• Distortion THD+N 0dBu < 0.01 %
• Noise < -112 dBu unweighted
• Frequency Response 10 Hz to 100 kHz (-6 dB)
• Insertion Loss 0 dB
• General
• Controls PAD -26 dB, GND LIFT
• Indicators Power ON
• Power Supply Phantom Power +48 volts
• Dimensions (W x H x D) 160 x 52 x 106 mm (6.30 x 2.05 x 4.17 ")
• Weight 0,52 Kg
