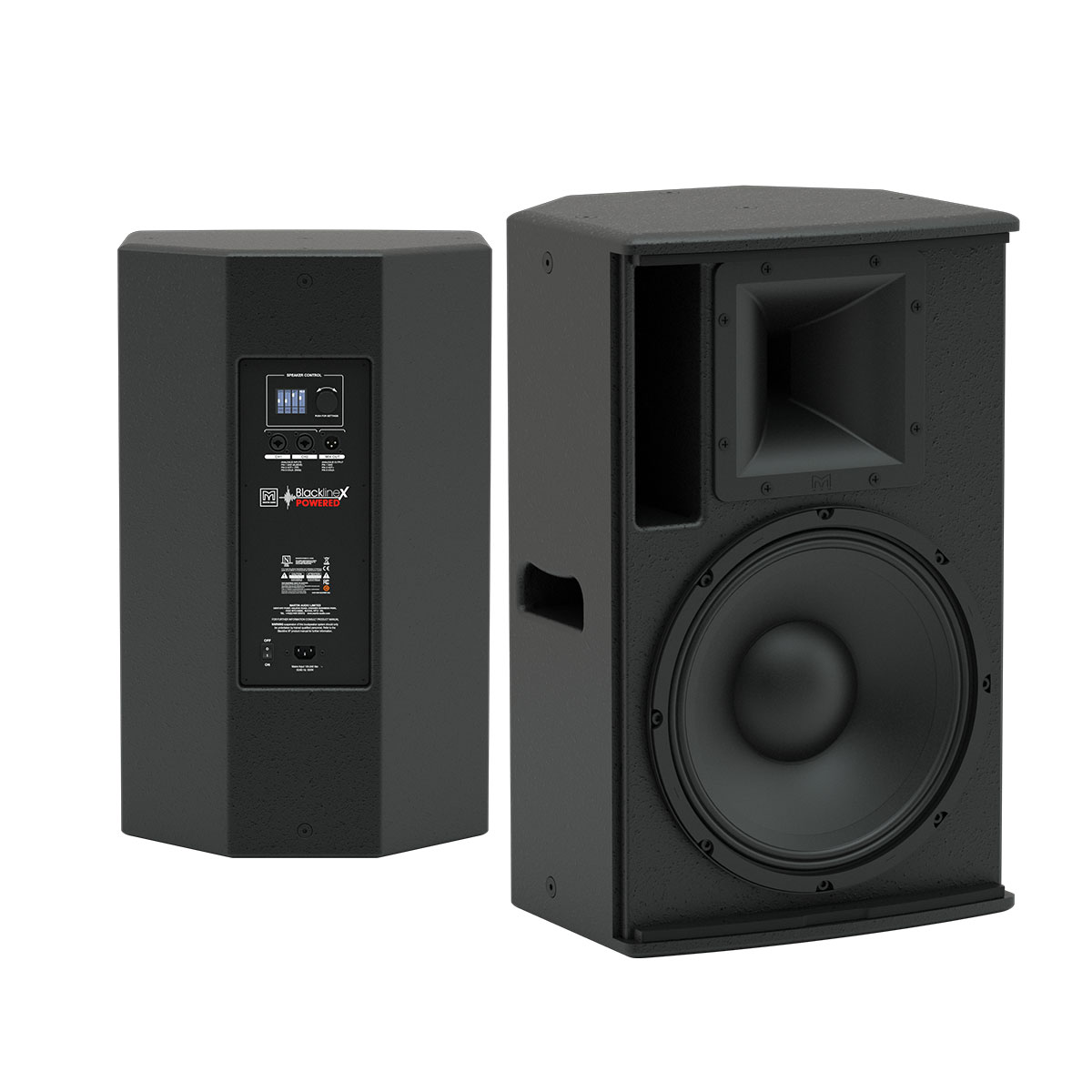

The XP12 is a compact, powered, two way system designed by leading engineers. It can be used either as a standalone system, stage monitor or in conjunction with the XP118 powered subwoofer. Featuring a 12” (300mm) LF drivers and a 1” (25mm) exit compression driver on an 80° x 50° rotatable horn, it is ideal for small to mid size indoor venues requiring class leading sound from a compact enclosure. The LF driver has a 2.5” (65mm) voice coil and powerful magnet system for the tightest bass response, while the HF compression driver utilises a 1.75” (44mm) polyimide diaphragm for extended high frequency response without distortion. An onboard Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers and sophisticated DSP functions are controlled by a rotary interface and multifunction, easy to use colour screen on the rear panel. DSP features include crossover function, a three channel mixer with three band EQ on each input channel and selection of three voicing presets and operating modes for flexible usage without external processing. The LF and HF drivers are independently protected by RMS and peak limiters for longevity and consistency of performance. The XP12 is road ready. Constructed from durable plywood, it is fitted with a cloth backed grille to protect the drivers from damage and dust ingress, while not impeding airflow at low frequencies. The enclosure has M8 inserts for eyebolt suspension and a pole mount socket with a removable cap that maintains clean lines for install applications. It is finished in black textured hard wearing paint as
BLUETOOTH® CONTROL AND STREAMING OPTION
ADDED FLEXIBILITY AT YOUR FINGERTIPS
The Bluetooth® feature means you can stream directly to the speakers via a phone or tablet without the need for any app. In addition the app – XP Connect - is available providing both audio streaming and control from iOS phones and tablets*. This provides full control of the onboard DSP, mixer and mode functions — enabling access to the mixer EQ, mute and level to optimise the speaker set-up remotely. It also enables two speakers to be linked for stereo playback.
*Search for XP Connect on Apple App Store.
Compact self powered two way system
FREQUENCY RESPONSE 62Hz – 20kHz ±3dB -10dB @ 50Hz
DRIVERS LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
MAXIMUM SPL 122dB continuous, 128dB peak
DISPERSION 80° H x 50° V (user rotatable)
CROSSOVER 2.3kHz active, 24dB/octave
Audio In/Out
INPUT CONNECTORS 2 x female XLR/ ¼” jack combo
MIC/LINE INPUT IMPEDANCE 8 kOhm balanced ¼” JACK TS
INPUT IMPEDANCE 1 MOhm unbalanced
MIX OUTPUT CONNECTOR 1 x male XLR
MIX OUTPUT IMPEDANCE 600 Ohm balanced
Internal Processing
Input channel EQ 3 band on each channel plus HPF (Ch1/2) Speaker EQ 3 speaker mode/voicing presets
Protection LF and HF Peak and RMS limiting, amplifier thermal protection
Amplifier
2 channel switch mode, class D
PEAK OUTPUT POWER 1200W total, 1000W LF, 300W HF
AVERAGE EFFICIENCY 89%
COOLING External convection cooled
MAXIMUM AMBIENT TEMPERATURE 35°C for full output
ENCLOSURE Multi angle birch/poplar ply
FINISH Black textured paint
GRILLE Black perforated steel with scrim cloth backing
FITTINGS 17 x M8 inserts, pole mount socket, 2 x pocket handles
DIMENSIONS (W) 358mm x (H) 574mm x (D) 318mm
WEIGHT 17kg
ACCESSORIES Wall bracket, eyebolts ACCESSORIES Wall bracket, eyebolts
