Same as the CC8 microphone, the CC8-SC also uses the OCC7 condenser capsule inspired by the legendary CK1 capsule. Small diaphragm microphones are often used as spot microphones in ensembles or for other applications where a high degree of focus on the sound source is desired. We have modified the acoustics of the CC8-SC in such a way that we obtain a very well developed supercardioid polar pattern, with which we can efficiently block sound coming from the side.
The OCC7 capsule with true condenser technology combined with the transformerless circuitry delivers a remarkably linear frequency response. The microphone can handle extremely high sound pressure levels, which in combination with a low self noise of only 13 dB (A) results in an impressive dynamic range. Fast transients and spatial information are captured in detail and, above all, without distortion. The CC8-SC always sounds naturally open and is neither harsh nor sharp, even at extreme volumes. Unwanted resonances do not occur, which means that EQ can be used for creative sound shaping.

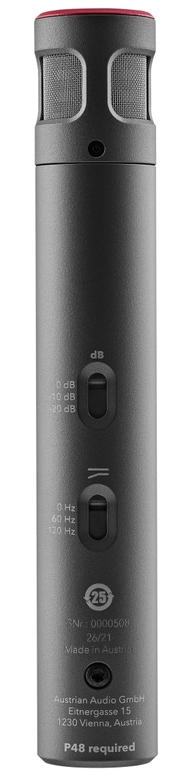

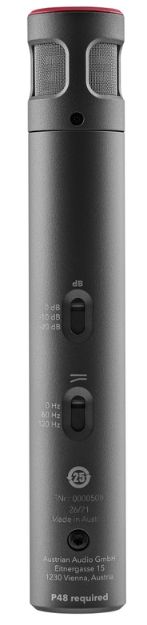

In addition to its outstanding sound characteristics, the CC8-SC is characterised by its extremely robust housing, with helpful functions such as pad and high pass filter switching are built in
CC8-SC -Key Features
• High precision supercardioid polar pattern
• Focuses tightly on the sound source, reducing unwanted ambient noise
• Meticulously tuned OCC7 capsule
• With a subtle roll off in highs and lows for a focused, natural sound
• True condenser technology
• Consistent sensitivity and overall performance over product lifetime
• Transformerless output design
• Classic condenser sound with modern clarity and transparency
• Switchable high pass filters
• Options at 0 Hz, 60 Hz, and 120 Hz to control low-end rumble
• Selectable pads
• -10 dB and -20 dB pads handle louder sources without distortion
• Low self noise Just 13 dB(A) for clean recordings without hiss
• Huge dynamic range Up to 132 dB, capture from a whisper to a roar
• Handles extremely high SPL Up to 155 dB without distortion — ideal for drums, brass, and loud amps
• Factory calibrated Within ±0.5 dB at 1 kHz; match perfectly with any other CC8-SC
• Robust build Durable all metal housing, cap, and grille
• Hand built in Vienna Combining classic Austrian craftsmanship with cutting edge engineering
Technical Specifications
• Super Cardioid
• Frequency range: 20Hz -20kHz
• Sensitivity: 18 mV/Pa
• Equivalent noise level: 13 dB(A)
• Max. SPL: 155 dB SPL
• Dynamic Range 132 dB
• Switchable pad: -10 dB, -20 dB
• Analog low cut filter: 60 Hz (2nd order), 120 Hz (2nd order)
• Impedance: 275 Ohm (symmetrical)
• Load impedance: > 1k Ohm
• Supply voltage: 48 V (< 3mA)
• Main Connector: XLR 3 pin
• Dimensions: 140 x 23 x 23 mm
• Weight: 160 g
