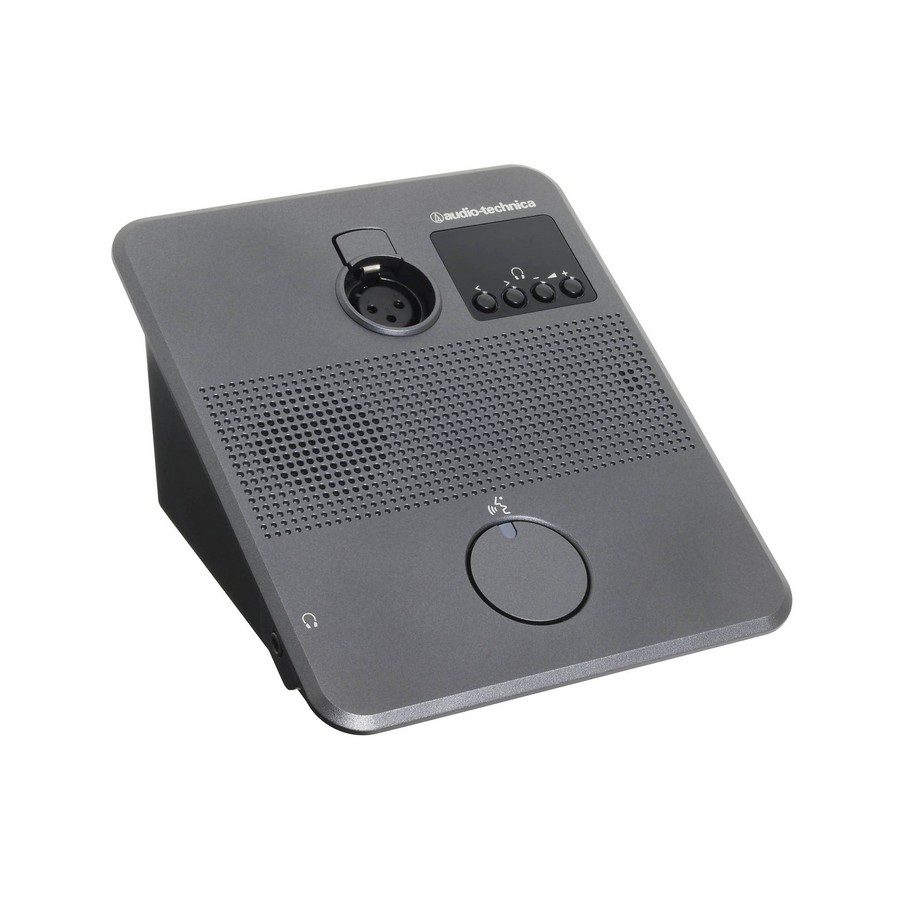

The ATUC-50DU has a 3-pin XLRF-type input for use with ATUC-M43H or ATUC-M58H microphones. Includes a talk/request-to-talk button, channel/volume display, channel selection buttons, built-in speaker, 3.5 mm (1/8") headphone jack with volume control, two LED indicators, and two RJ45 ports. Designed for tabletop or recessed mounting.
Versatile digital discussion system can be configured as a wired or wireless system, or as a wired-wireless hybrid system
Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
Easy plug-and-play operation
Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units, ATUC-50IU integration units, and ATUC-50INT interpretation units*
3 ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system with up to 300 DU/IU/INTs*
Each ATUC-IRCU infrared control unit supports a maximum of 200 ATUC-IRDU discussion units and 100 ATUC-50DU/IU/INT units
Systems can be configured in either daisy chain or ring topology
Up to two ATUC-50CU control units can be linked off of the ATUC-IRCU, providing an additional 100 wired DU/IU/INTs per 50CU for a grand total of 500 DU/IU/INTs*
Unlike typical UHF wireless systems that broadcast through walls, the ATUC-IR infrared transmission keeps your signals safe and secure, with no information leakage
IR transmission does not require any form of frequency coordination
Optional ATUC-IRCUDAN infrared control unit model includes Dante™ output with redundancy
ATUC-50INT units make it easy to add bi- or trilingual interpretation to a discussion
3 selectable operation modes (Free Talk, Request to Talk, and Full Remote), plus various override settings
Built-in WAV and MP3 recorder lets you record to a USB mass storage device
Control available through Web Remote interface and third-party IP Control Systems
Individual automated gain control (AGC), mic gain and mic EQ for each discussion unit
ATUC-IRDU can be powered by one or two LI-240 lithium batteries (available separately) for approximately 6.5 or 13 hours of use
ATUC-50IU integration unit mounts discreetly, is compatible with additional microphone models and provides the opportunity for a fully-custom integrated installation
ATLK-EXT165 link extender supplies DC +48V power to connected devices, enabling extended cable runs
Expandable and scalable system design
*To achieve the maximum number of DU/IU/INTs, you must use ATLK-EXT165 link extenders and have the appropriate firmware version installed on your CU: version 1.6.0 or later for a wired-only system (ATUC-50); version 1.6.4 or later for a hybrid system (ATUC-50/ATUC-IR). Max of six INTs per CU.
