Product Description

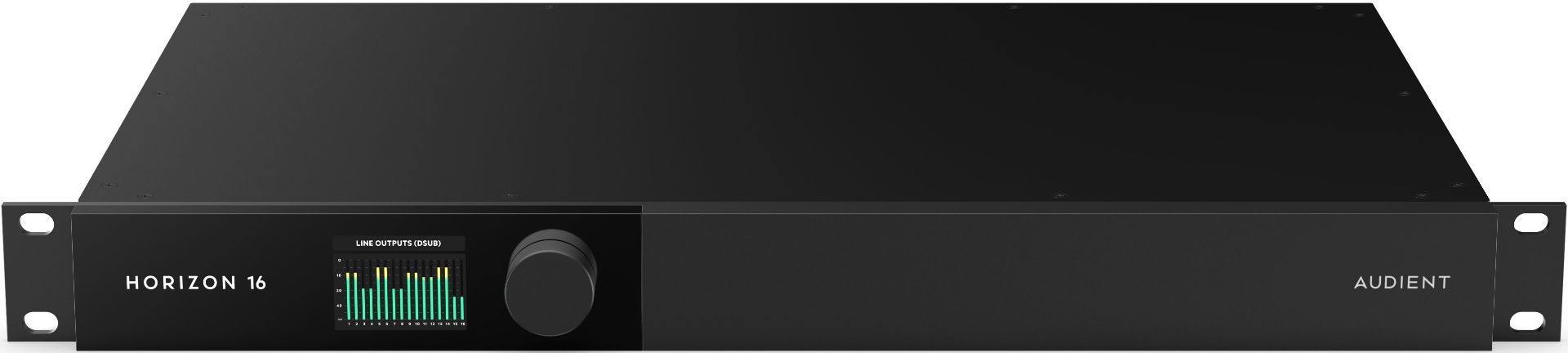

The Horizon 16 is a 34 in / 34 out Thunderbolt 3 audio interface and converter built around 16 channels of line I/O over four DB25 connectors and 32 bit conversion at 133dB dynamic range. With a dedicated stereo mix bus path and 0.99ms round trip latency, the 16 keeps an entire outboard rack patched and printing to the DAW without sacrificing inputs — designed for the engineer integrating analogue hardware or instruments into a hybrid mixing workflow
Key Features
34 in / 34 out connectivity over Thunderbolt 3
16 in / 16 out primary line I/O over four DB25 connectors
Dedicated stereo mix bus inputs for printing your master
Dedicated stereo monitor outputs for independent reference listening
32 bit / 192kHz conversion, 133dB dynamic range
0.99ms round trip latency (192kHz, 64-sample buffer)
Dual ADAT I/O — 16 channels of digital expansion
Horizon Control software — virtual patch bay, custom monitoring, onboard comfort Reverb, and extensive metering
Advanced monitor control — mono, polarity, dim and reference level
Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
Scalable architecture — daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
1U all-metal chassis, three-year warranty
macOS, up to 192kHz
Why the HORIZON 16?
The 16 is built to sit at the centre of a hybrid studio. Sixteen channels of line I/O over four DB25 connectors keep a full rack of compressors, EQs and a summing box permanently patched, while a dedicated stereo mix bus path lets you print your master back to the DAW without unplugging a thing. With 32-bit conversion at 133dB dynamic range your outboard returns exactly as it left, uncoloured, and 0.99ms round trip latency keeps native plugins lag free. Horizon Control handles routing, monitoring and metering from one panel — and when a session outgrows a single unit, you can daisy chain up to four for 200 in and 200 out on one driver
