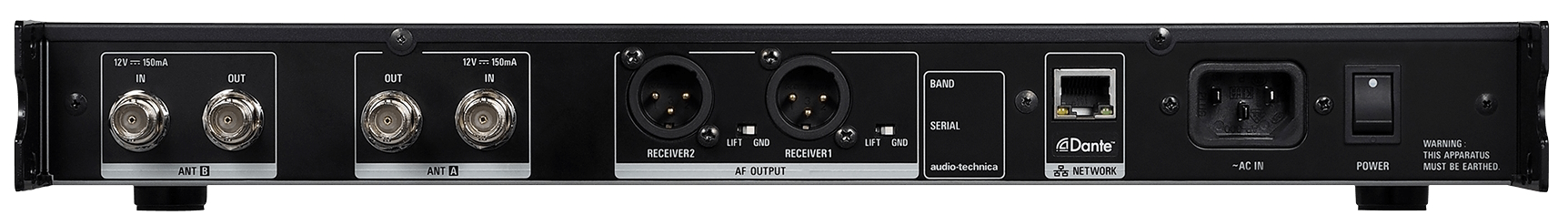

The sleek, rack mounted 3000 Digital Series dual channel receiver features the newly created Audio-Technica codec. The digital signal can be streamed over the Dante™ network. The antenna cascade output allows five receivers to be simultaneously connected; this allows a single pair of antennas to feed up to 10 channels of wireless audio, minimizing the rack space required
With the 3000 Wireless Digital Series ATW-DR3120DAN dual channel receiver, easily monitor frequency coordination, equipment status and logs by the free of charge Wireless Manager software. For even more accuracy and peace of mind, real time in field walk testing is possible helping you spot operating range limits and dropout zones
Features
High quality digital wireless system with a newly developed proprietary Audio-Technica codec for excellent quality sound
Super low latency of 2.5ms
Antenna cascade output allows 5 receivers to be connected so a single pair of antennas can feed up to 10 channels of wireless
AES256 encryption allows you to transmit confidently and without fear of network intrusion
The Network enabled receiver offers network control and monitoring via the Audio-Technica Wireless Manager software
MIX (Audio MIX) output function of receiver 1 and receiver 2
Receiver features Dante™ output
Receiver Specifications
Receiving System True Diversity
Image Rejection 70 dB
RF Sensitivity -98 dBm (10-5 BER)
Maximum Output Level 18 dBV (Line), -12 dBV (Mic)
Antenna Input BNC-type, 50 ohms
Antenna Power 2 x (12 VDC, 150mA)
Power Supply 100 to 240 VAC (50/60 Hz)
Operating Temperature Range -5°C to +40°C
Dimensions 483 mm × 385 mm × 44 mm (W × D × H)
Weight Approx. 4.1 kg
Accessories Included 1/2? whip antenna × 2, power cable, rubber legs × 4
